Unlock Trading Potential with the Harami Alert Indicator for MetaTrader 5

Mike • 2018-10-26 03:03
6 0 0
Attachments
22403.zip (3.69 KB, Download 0 times)

Meet the Creator

Real author: Paul Stringer

The Harami Alert Indicator is designed to identify Harami patterns in the market, complete with alerts, email notifications, and push notifications to keep you in the loop while trading.

We made a few tweaks to the indicator's code to implement these alerts and notifications, making it even more useful for traders:

  1. New input parameters were introduced:
    input uint NumberofBar=1;//Bar number for the signal
input bool SoundON=true; //Enable alerts
input uint NumberofAlerts=2;//Number of alerts
input bool EMailON=false; //Enable mailing the signal
input bool PushON=false; //Enable sending the signal to mobile devices
  2. Three new functions were added at the end of the indicator code: BuySignal(), SellSignal(), and GetStringTimeframe().
    //+------------------------------------------------------------------+
//| Buy signal function                                              |
//+------------------------------------------------------------------+
void BuySignal(string SignalSirname,      // Indicator name for alerts
               double &BuyArrow[],        // Buffer for buy signals
               const int Rates_total,     // Current number of bars
               const int Prev_calculated, // Number of bars on the previous tick
               const double &Close[],     // Closing prices
               const int &Spread[])       // Spread
  {
//---
   static uint counter=0;
   if(Rates_total!=Prev_calculated) counter=0;

   bool BuySignal=false;
   bool SeriesTest=ArrayGetAsSeries(BuyArrow);
   int index;
   if(SeriesTest) index=int(NumberofBar);
   else index=Rates_total-int(NumberofBar)-1;
   if(NormalizeDouble(BuyArrow[index],_Digits) && BuyArrow[index]!=EMPTY_VALUE) BuySignal=true;
   if(BuySignal && counter<=NumberofAlerts)
     {
      counter++;
      MqlDateTime tm;
      TimeToStruct(TimeCurrent(),tm);
      string text=TimeToString(TimeCurrent(),TIME_DATE)+" "+string(tm.hour)+":"+string(tm.min);
      SeriesTest=ArrayGetAsSeries(Close);
      if(SeriesTest) index=int(NumberofBar);
      else index=Rates_total-int(NumberofBar)-1;
      double Ask=Close[index];
      double Bid=Close[index];
      SeriesTest=ArrayGetAsSeries(Spread);
      if(SeriesTest) index=int(NumberofBar);
      else index=Rates_total-int(NumberofBar)-1;
      Bid+=Spread[index]*_Point;
      string sAsk=DoubleToString(Ask,_Digits);
      string sBid=DoubleToString(Bid,_Digits);
      string sPeriod=GetStringTimeframe(ChartPeriod());
      if(SoundON) Alert("BUY signal \n Ask=",Ask,"\n Bid=",Bid,"\n currtime=",text,"\n Symbol=",Symbol()," Period=",sPeriod);
      if(EMailON) SendMail(SignalSirname+": BUY signal alert","BUY signal at Ask="+sAsk+", Bid="+sBid+", Date="+text+" Symbol="+Symbol()+" Period="+sPeriod);
      if(PushON) SendNotification(SignalSirname+": BUY signal at Ask="+sAsk+", Bid="+sBid+", Date="+text+" Symbol="+Symbol()+" Period="+sPeriod);
     }
//---
  }
//+------------------------------------------------------------------+
//| Sell signal function                                             |
//+------------------------------------------------------------------+
void SellSignal(string SignalSirname,      // Indicator name for alerts
                double &SellArrow[],       // Buffer for sell signals
                const int Rates_total,     // Current number of bars
                const int Prev_calculated, // Number of bars on the previous tick
                const double &Close[],     // Closing prices
                const int &Spread[])       // Spread
  {
//---
   static uint counter=0;
   if(Rates_total!=Prev_calculated) counter=0;

   bool SellSignal=false;
   bool SeriesTest=ArrayGetAsSeries(SellArrow);
   int index;
   if(SeriesTest) index=int(NumberofBar);
   else index=Rates_total-int(NumberofBar)-1;
   if(NormalizeDouble(SellArrow[index],_Digits) && SellArrow[index]!=EMPTY_VALUE) SellSignal=true;
   if(SellSignal && counter<=NumberofAlerts)
     {
      counter++;
      MqlDateTime tm;
      TimeToStruct(TimeCurrent(),tm);
      string text=TimeToString(TimeCurrent(),TIME_DATE)+" "+string(tm.hour)+":"+string(tm.min);
      SeriesTest=ArrayGetAsSeries(Close);
      if(SeriesTest) index=int(NumberofBar);
      else index=Rates_total-int(NumberofBar)-1;
      double Ask=Close[index];
      double Bid=Close[index];
      SeriesTest=ArrayGetAsSeries(Spread);
      if(SeriesTest) index=int(NumberofBar);
      else index=Rates_total-int(NumberofBar)-1;
      Bid+=Spread[index]*_Point;
      string sAsk=DoubleToString(Ask,_Digits);
      string sBid=DoubleToString(Bid,_Digits);
      string sPeriod=GetStringTimeframe(ChartPeriod());
      if(SoundON) Alert("SELL signal \n Ask=",Ask,"\n Bid=",Bid,"\n currtime=",text,"\n Symbol=",Symbol()," Period=",sPeriod);
      if(EMailON) SendMail(SignalSirname+": SELL signal alert","SELL signal at Ask="+sAsk+", Bid="+sBid+", Date="+text+" Symbol="+Symbol()+" Period="+sPeriod);
      if(PushON) SendNotification(SignalSirname+": SELL signal at Ask="+sAsk+", Bid="+sBid+", Date="+text+" Symbol="+Symbol()+" Period="+sPeriod);
     }
//---
  }
//+------------------------------------------------------------------+
//|  Getting the timeframe as a string                               |
//+------------------------------------------------------------------+
string GetStringTimeframe(ENUM_TIMEFRAMES timeframe)
  {
//----
   return(StringSubstr(EnumToString(timeframe),7,-1));
//----
  }
  3. We added calls to BuySignal() and SellSignal() functions following the indicator calculation cycles within the OnCalculate() block:
    //---
   BuySignal("Harami_Alert",BuyBuffer,rates_total,prev_calculated,close,spread);
   SellSignal("Harami_Alert",SellBuffer,rates_total,prev_calculated,close,spread);
//---

Here, BuyBuffer and SellBuffer are the names of the indicator buffers where buy and sell signals are stored. Remember to set empty values in these buffers as either zeros or EMPTY_VALUE.

Initially, this indicator was developed in MQL4 and was first shared on the Code Base back on June 14, 2016.

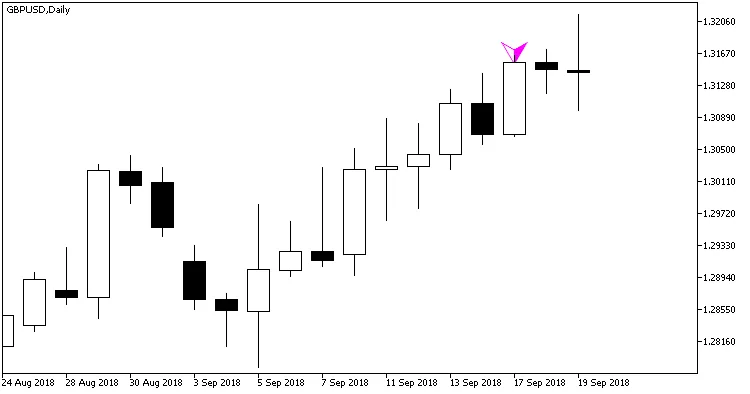

Fig. 1. Harami_Alert indicator on the chart

Fig. 1. Harami_Alert indicator on the chart

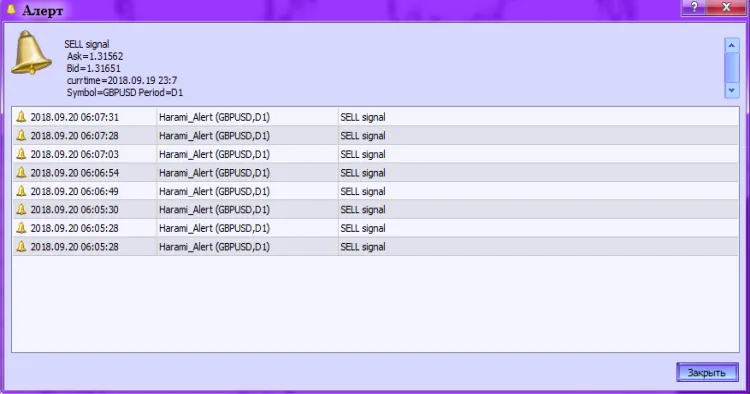

Fig. 2. Harami_Alert. Generating alerts

Fig. 2. Harami_Alert. Generating alerts
